      Multi-jet

      DS99TAR-20E (U.S. Gallon)


      APPLICATION: MEASURING THE TOTAL VOLUME OF COLD POTABLE WATER PASSING THROUGH THE METER,IT'S SUITABLE FOR DOMESTIC USE.
      OPERATING CONDITION:
      ●THE MAX.ADMISSIBLE WATER PRESSURE: 1.6MPa (16bar).
      ●RSISTING WATER TEMPERATURE OF 50℃
      SPECIALITY:
      ●LARGE MEASURING RANGE, HIGH FLOW ACCURACY
      ●STEADY ERROR CURVE
      ●RELIABLE OPERATION
      ●MAGNETIC SHIELD PROTECTION
      ●NEGLIGIBLE HEAD LOSS AT WORKING FLOW – RATES
      ●SEALED & VACUUMIZED REGISTER WITHOUT ANY CONDENSATION PROBLEM

      Maximum permissible error:
      Between qt (included) and qs is ±2%;
      Between qmin and qt (excluded) is ±5%.
      NOTE: The technical data conform to ISO4064 standard, class B.
      FLOW-ERROR CURVE

      SPECIFICATION AND OVERALL DIMENSIONS
      Description
      Unit

      Hydraulic data and dimensions

      Nominal size
      mm

      20

      inch

      3/4

      Overload flow-rate (qs)
      Gal./h

      1320

      Permanent flow-rate (qp)
      Gal./h

      660

      Transitional flow-rate (qt)
      Gal./h

      52.8

      Minimum flow-rate (qmin)
      Gal./h

      13.2

      Min. reading
      Gal./h

      0.1

      Max. reading
      Gal.

      9999999.9

      Nominal pressure
      MPa

      1.6

      ΔP at the qs
      MPa

      ≤0.10

      Weight
      Without connections
      kg

      1.7

      With connections

      1.97

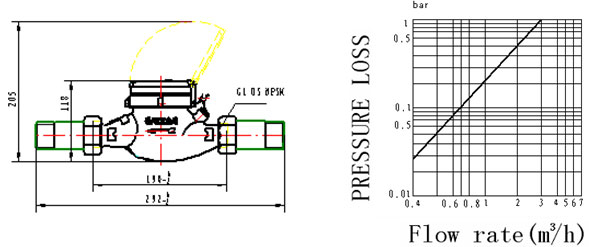

      OVERALL DIMENSIONS                                                                           PRESSURE LOSS CURVE
